Smart3G Ethernet PLC

Overview

The Smart-3G Ethernet Programmable Controller (pn 5732P) provides networked 24volts Digital I/O for MDR Powered Roller Conveyor systems, as well as general purpose Fast Local/Remote Machine I/O. These Devices are fully programmable for any type of control application, and can act as a programmable master device, or a slaved network I/O device. The modules communicate over Ethernet to master or peer devices using Ethernet/IP, Modbus/TCP, Profinet. For MDR conveyor systems, interlocking messaging bits e.g., upstream, downstream, merge, divert, etc are handled by the firmware for simplified Ladder Logic Programming.

  1. Local and remote programming by using serial port or Ethernet interface.
  2. 8 Digital 24V outputs, up to 1 Amp per output.
  3. 8 Digital 24V inputs.
  4. Free ladder logic programming software - SuperLogic
  5. Status LEDs for inputs, outputs, and Network
  6. Ethernet/IP, Modbus/TCP and Profinet Protocols.
  7. Quick disconnect Phoenix I/O Connectors
  8. No PC-Host required for standalone operation
  9. Serial Port for barcode readers and other peripherals
  10. Rotary DIP Switches for Network ID
  11. Average Scan time of 50 microsecond per rung.

The Smart-3G cards are programmble using Ladder Logic. In addition, these cards can act as remote I/O for master PLCs or PC software. By selecting Remote-I/O checkbox in configuration, the card acts on I/O commands received from the master PLC, and does not execute any local ladder program.

These cards are well suited for distributed I/O system. Each card can have its own ladder logic program for I/O control, and can talk over ethernet to exchange I/O messages.

For centralized I/O, one card can act as master controller and controls up to 8 other slave Smart-3G cards, which act as remote-i/o. The Remote-I/O cards inputs and outputs become local I/O on master controller. This method allows easy debugging and use only one ladder logic program for the whole system.

Ignition Support

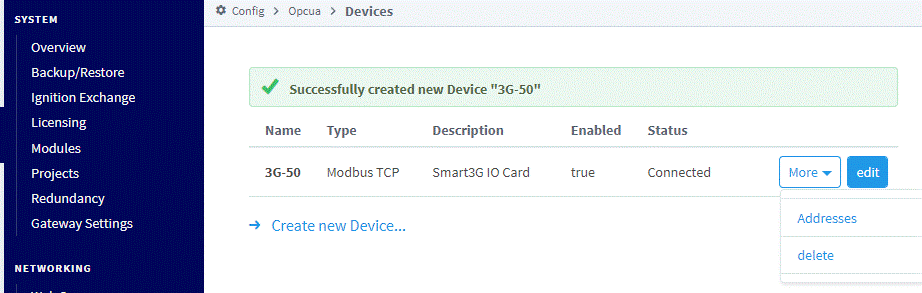

The Smart3G now has support for Ignition SCADA/HMI software. Please refer to the User Guide for details.

Price List

Smart3G Products

5732P $495
Smart-3G - PNP Ethernet PLC (Latest Technology) Add to order
5732PMBC $495
Smart3G PLC with Embedded Modbus Client Add to order
5732P-8.24 $495
Smart3G PNP Card with 8.24 firmware Add to order
5732P-8.19 $495
Smart3G PNP Card with 8.19 firmware Add to order
5732P-8.06 $495
Smart3G PNP Card with 8.06 firmware Add to order
5732P-6.32 $495
Smart3G PNP Card with 6.32 firmware Add to order
5732Px100 $45000
Smart3G 100pcs Order ($450 ea) Add to order
