YSK1500
Need help in choosing the right Motors and Drives for your system?
Please feel free to contact us for assistance
Listed below are the specifications for the Motor/Drive set. Each set includes:
- AC Servo Motor
- AC Servo Drive
- 5 meter power cable
- 5 meter encoder cable
![](https://www.vitalsystem.com/cnc/servo/Yaskawa/750WSet-small.jpg)
Specifications
Motor Model | SGM7A-15AFA61 |
---|---|
Rated Power (W) | 1500 |
Rated Line Voltage (V) | 200 |
Rated Line Current (A) | 9.3 |
Rated Speed (rpm) | 3000 (6000 max) |
Rated Torque (N.m) | 4.9 |
Peak Torque (N.m) | 14.7 |
Motor Moment of Inertia (kg.m2) | 2.00x10-4 |
Protection Level | IP67 |
Operating Environment | Temperature: 0°C ~ 40°C (40°C ~ 60°C with derating) Humidity: Relative Humidity 20% ~ 80% (not including condensing condition) |

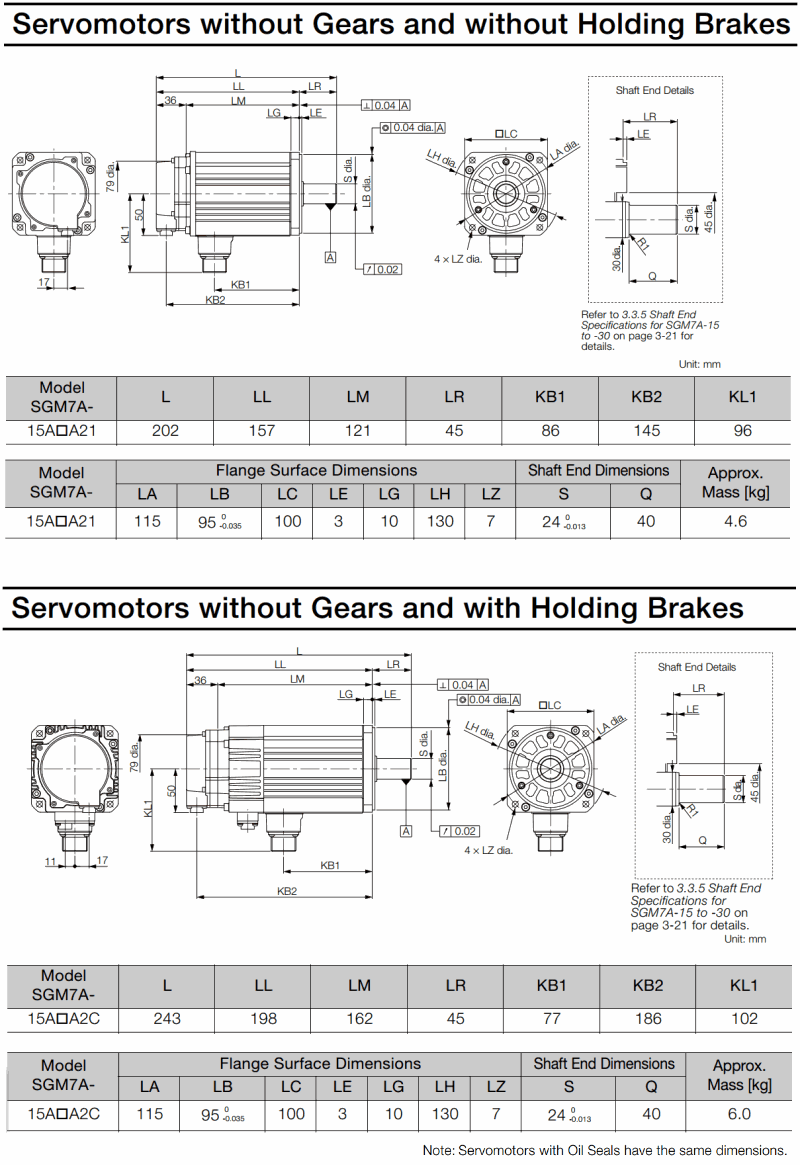

Dimensions
Price List
YSK1500 | $2335 | ||
YASKAWA Sigma7 1.5kW AC Servo Motor and Drive Set | Add to order | ||
