How to do a fresh install of HiCON Plugins Files

  • Copy any mach4 license files in the licese folder to a safe location.
  • Please uninstall the old mach4 version completely.
  • Make sure C:\Mach4Hobby is completely removed or any other mach4 folder in the C:\ directory.
  • Now download fresh mach4 version from their website: Mach4 Download Page.
  • Download the latest plugin: Integra Plugins Download.
  • Extract and copy only the .m4pw and .sig files to mach4 plugins folder.
  • Download the sample mach4 profile for integra from vital system: Mach4_Integra_Mill.m4prof.
  • Launch Mach4 Loader icon on your desktop and select import profile and go the above downloaded sample profile location and select it.
  • You will see Integra in the profile selection and launch it.

ArcPro Plasma

Wiring Diagram

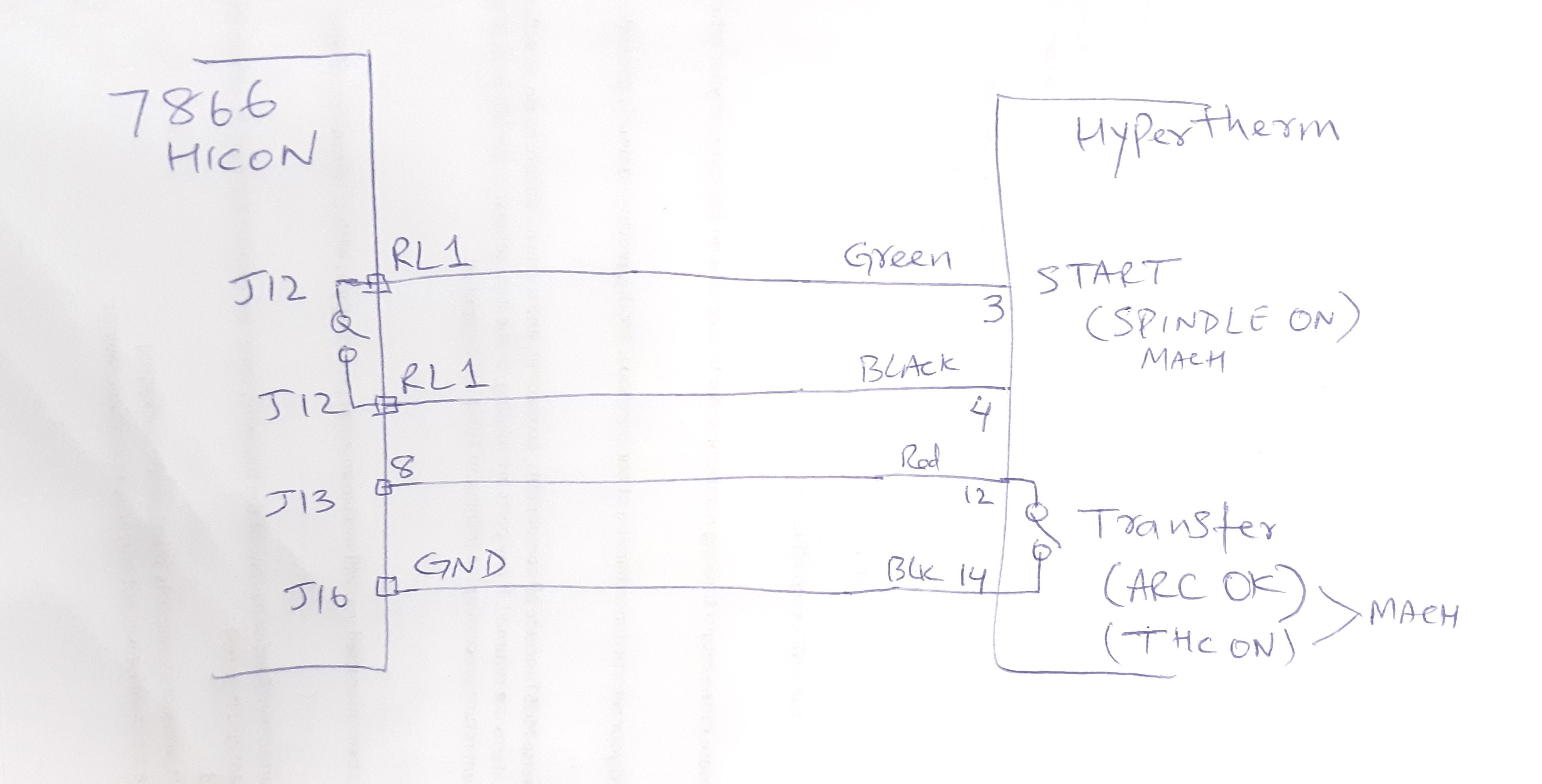

The Start/TorchON wires from the plasma must be connected to a relay on the HiCON controller. For the Transfer/ArcOK wires, one must be connected to an NPN/PNP input on the HiCON controller while the other must be connected to either GND/24v respectively. This is demonstrated in the below wiring diagram:

ARCPRO: Arc-OK Signal

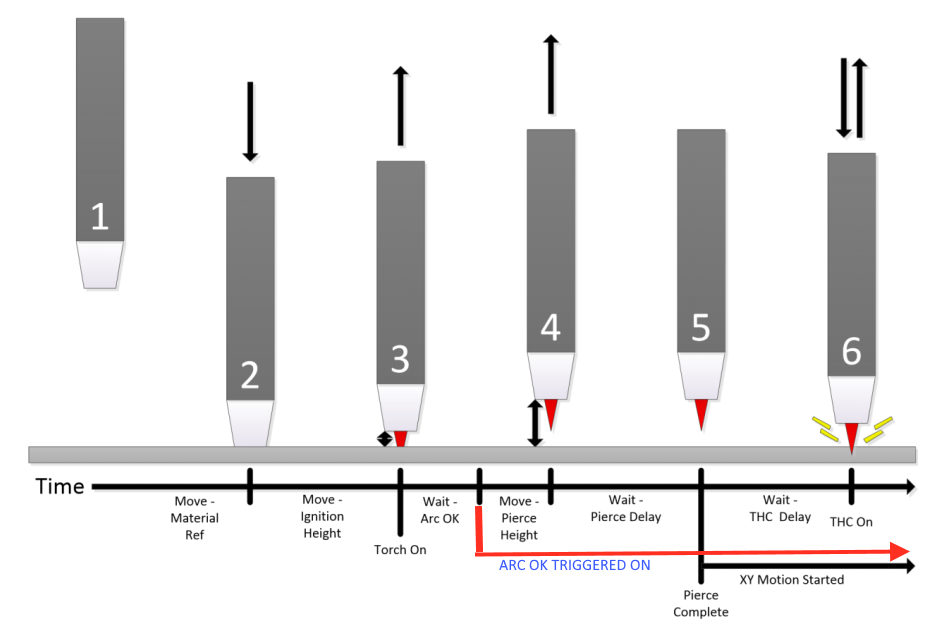

The 'Torch Height Control' feature of the HiCON motion controller waits for the 'Arc OK' signal after the torch head lifts to the ignition height and turns ON. If the 'Arc OK' signal is not detected, the THC sequence will be aborted by the controller. The following image shows the steps in a 'Plasma-cut' sequence.

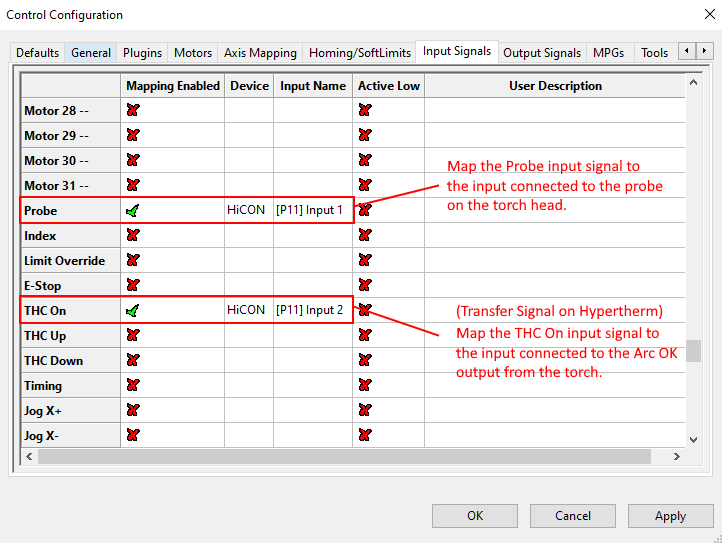

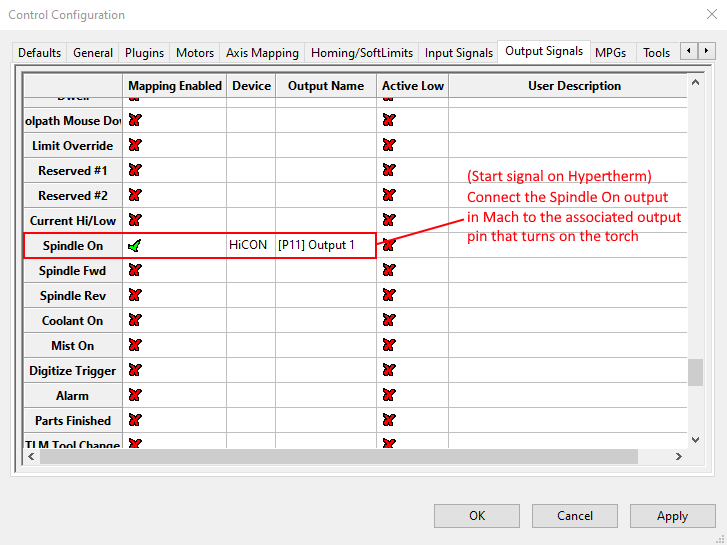

It's important to note that the 'Arc OK' signal must be mapped to 'THC ON' Input signal in Mach4. The following images show the necessary mappings in Mach4.

It's highly recommended that one follows the ArcPro Plasma Guide document well before trying the 'Torch Height Control' feature.

ARCPRO-Z Offset

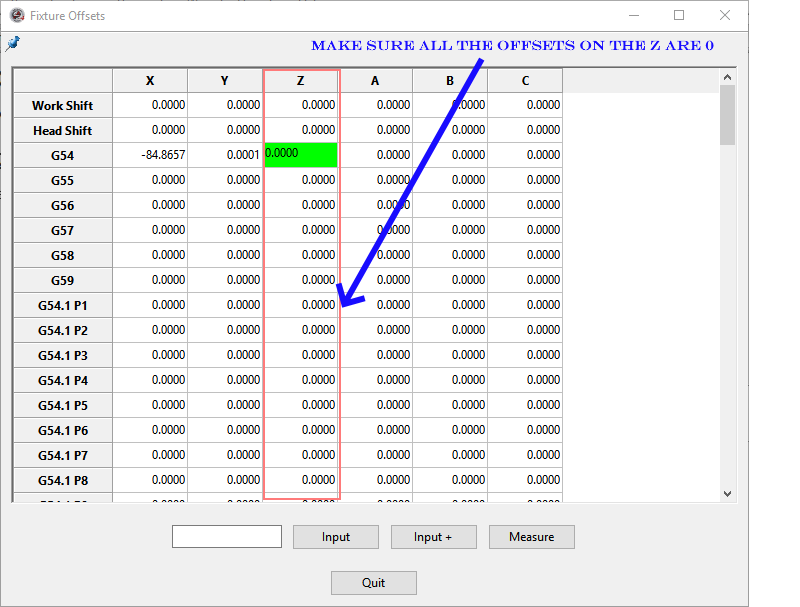

On the Z-Axis, make sure there is no offset (G54, G55, G56, ...). The other axis X or Y etc can still have offsets defined. The 'ArcPro v1' uses the machine coordinates on Z-axis, hence choosing an offset on Z-axis may swap the probe direction and create a problem.

How to program physical buttons to the Mach4 "Cycle Start, "Feed Hold" and "Stop"

  • Open Mach4, go to Configure > Control > Input Signals.

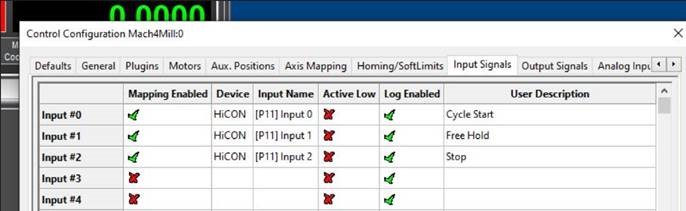

  • Configure the input signals as shown in the image below:
  • Hit Apply > OK.
  • Go to Operator > Edit Screen.

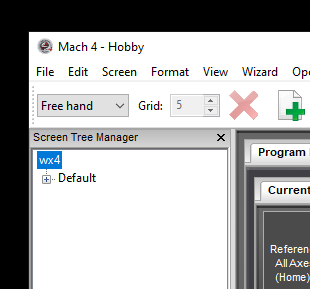

  • In Screen Tree Manager, Click wx4.

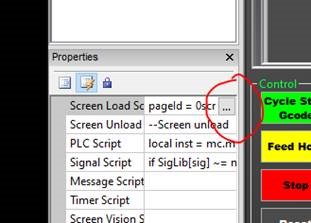

  • In Properties, click Events > Click Screen Load Script > Click the button with three dots […].

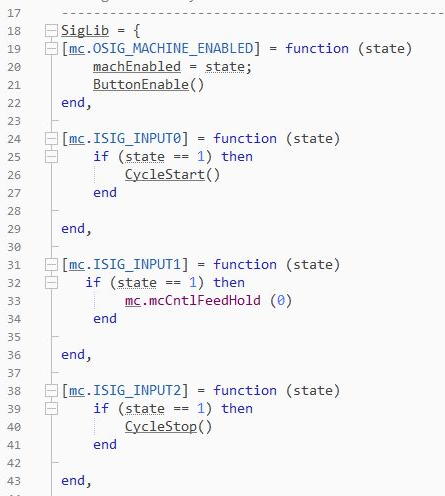

  • This will Open a script, in SigLib section (line 18), add the following code:
  • Save and close the script.
  • Go to operator > Edit Screen and save changes.

Homing & Ref-all

When ref-all pressed, motor stops after some motion

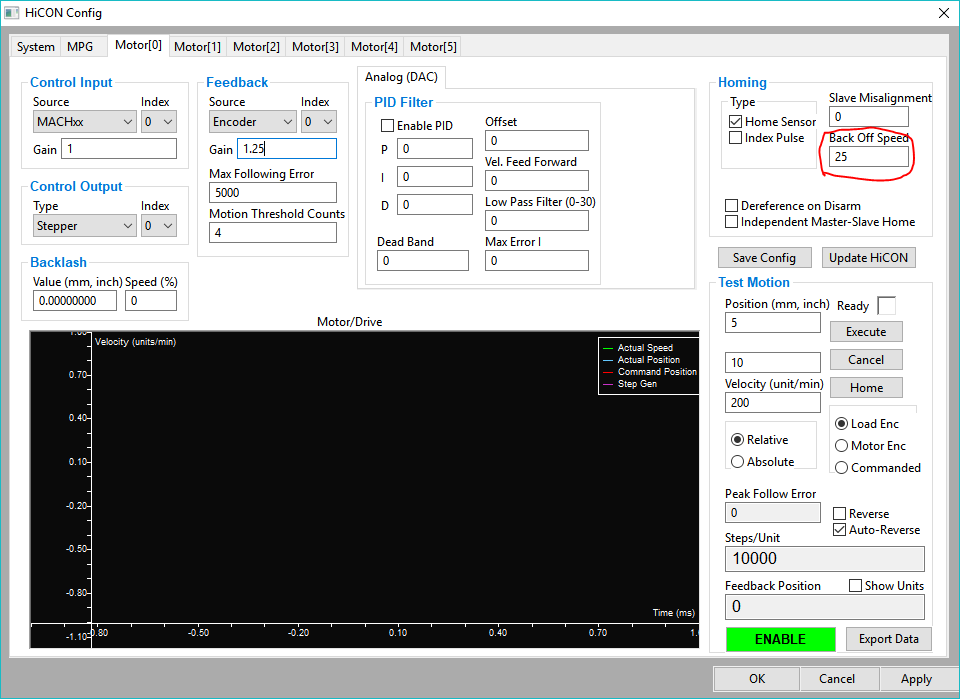

The BackOff speed setting on HiCON plugin config window must be given a good value. If it's zero or too low, the motor won't move away from the sensor.

Yaskawa HiCON Integra

Connecting 7737 to a Servo Drive e.g. Yaskawa

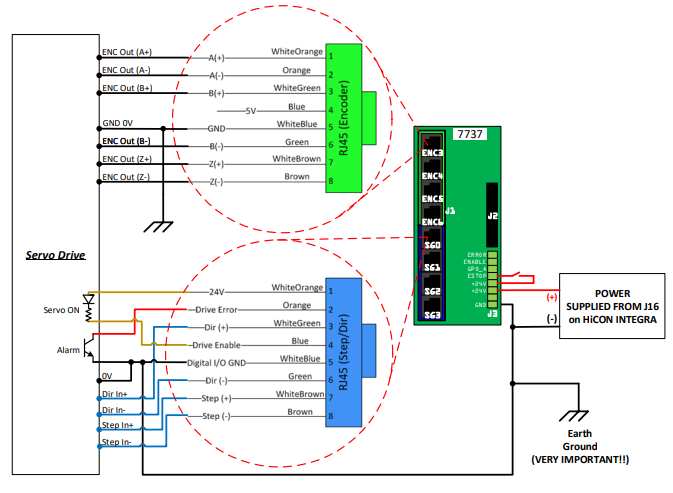

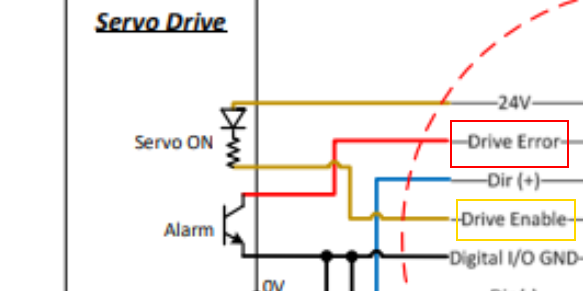

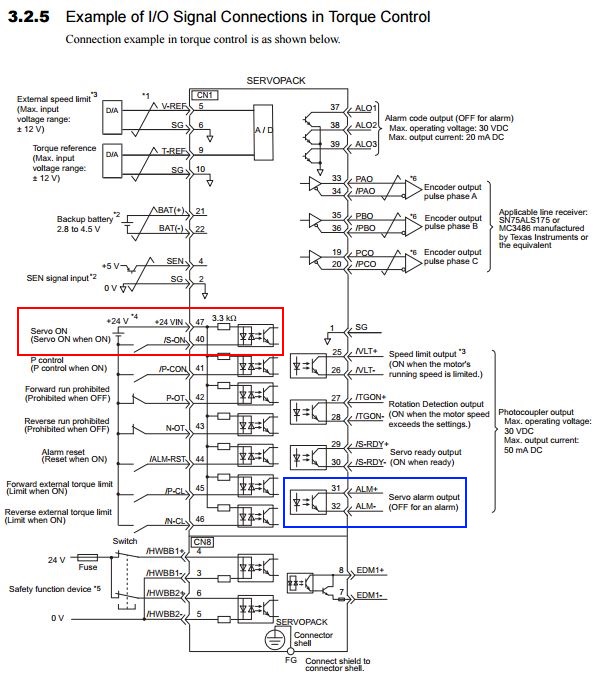

The 7737 wiring with a motor drive is discussed in the 7737_wiring.pdf manual. The wiring of the Encoders and Step/Dir RJ45's are clearly explained in the manual with "Drive Error" connecting to "Alarm" and "Drive Enable" connected to "Servo ON" of the Servo Drive.

The terminals "Servo ON" on Servo Drive connects with '+24V' and 'Drive Enable' from 7737. Some Drives only use 5volts, so please check before you hookup 24V. The terminals "Alarm" on Motor Drive connects 'Drive Error' and 'Digital IO GND' from 7737.

The Enable and Alarm terminals that you can connect to 7737 for instance on "Yaskawa" Servo Drive you may find similar setup on your specific drive.

7737 - Enabling J7/J8 Plugs

7737 Enable on VSI Device Manager

The features of 7737 like ESTOP and Motor Step/Dir signals will not work unless the port (J7/J8) is enabled using the VSI Device Manager and downloaded on to the Integra board.

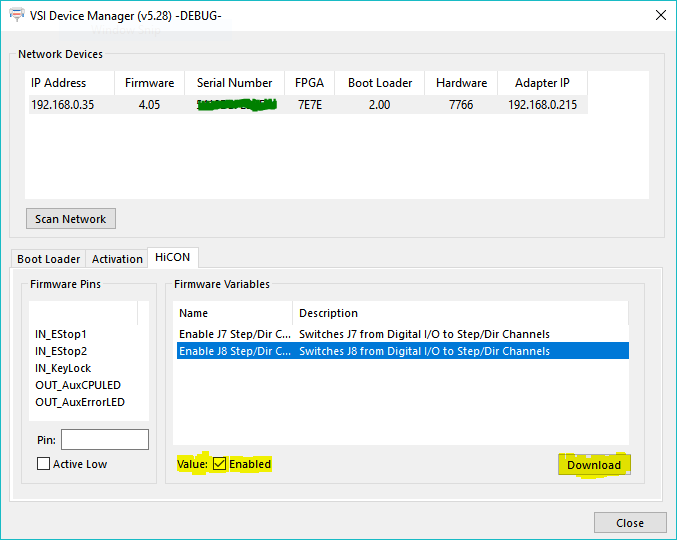

On your VSI Device Manager, select your HiCON motion controller and select "HiCON" tab Check "Value Enabled" and hit on "Download" button. This ensures that 7737 that you are going to use with J7/J8 is going to switch from I/O to Step/Dir Channels.

Closed-Loop System Setup

Start with Mach4 profile available on our website. Modify this profile to match your machine. Do not use encoder feedback right away Once motor start working with step and direction, then calculate feedback gain for each encoder, and then enable encoder feedback.
For more information refer: Closed loop PID configuration
For Closed loop Product listing visit HiCON Integra

Stepper/Servo Connections

Note: If the driver is already enabled by default, then there's no need to wire the Enable. Users get confused and spend a lot of time not knowing this.

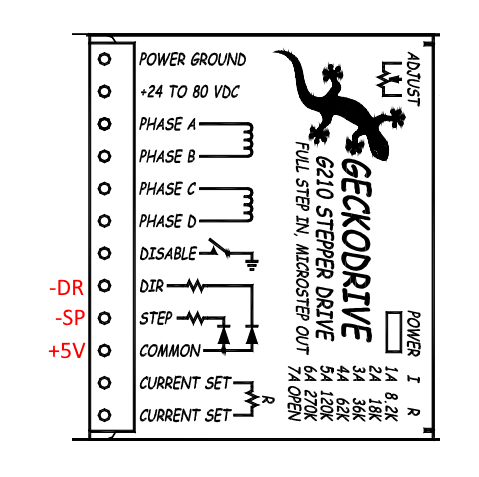

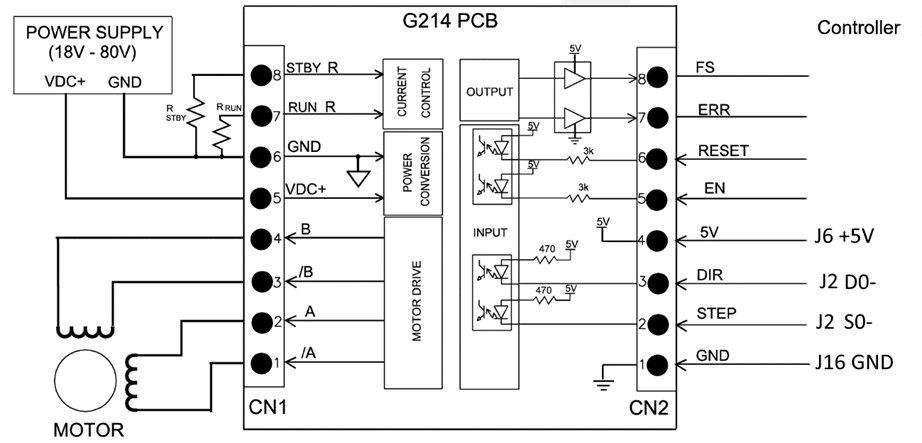

Gecko G214

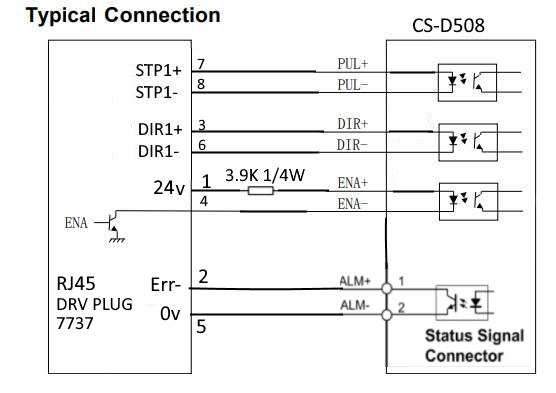

CS-D508

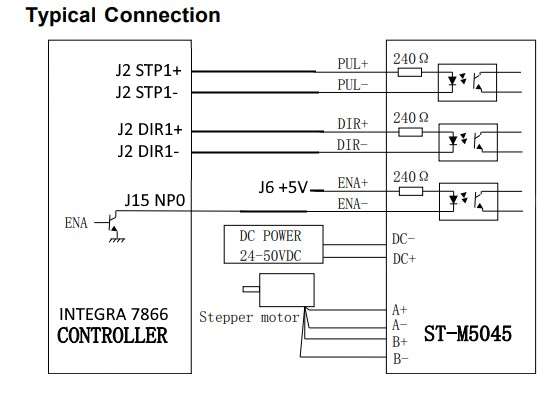

ST-M5045

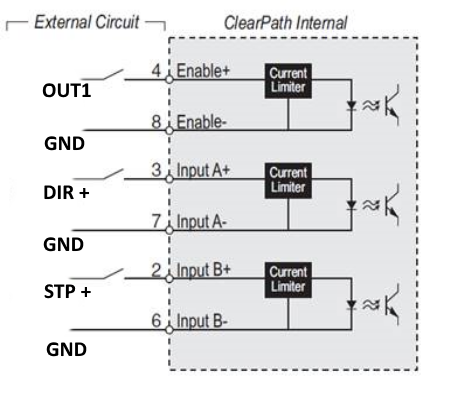

ClearPath

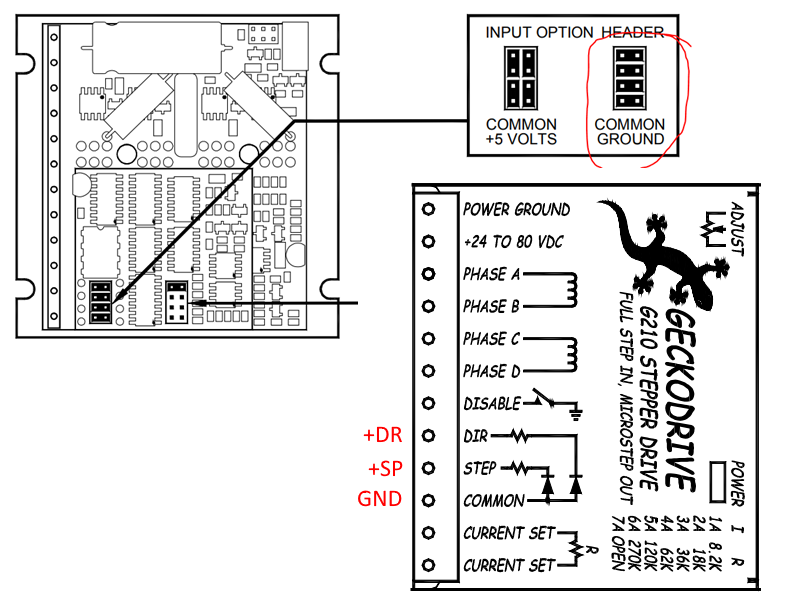

Gecko210

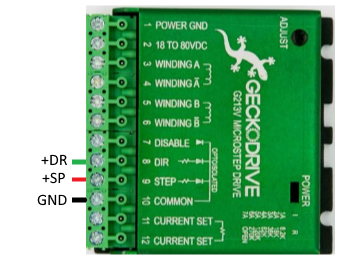

Gecko213V

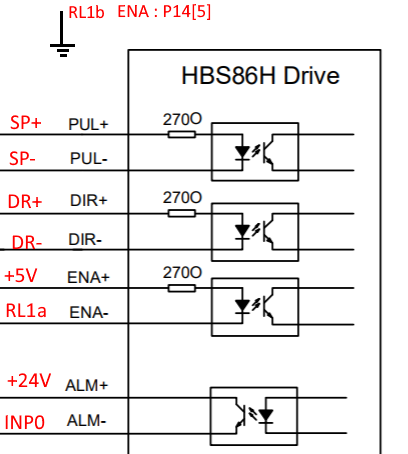

HBS86H

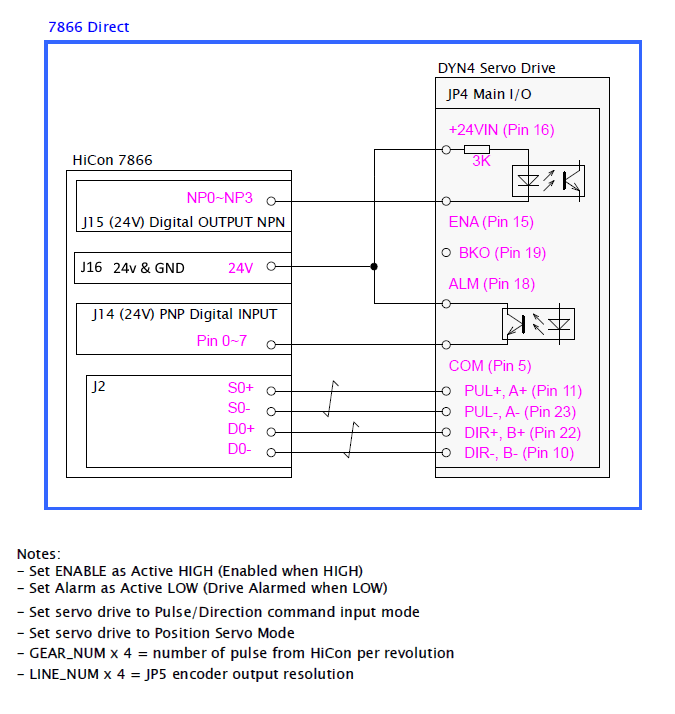

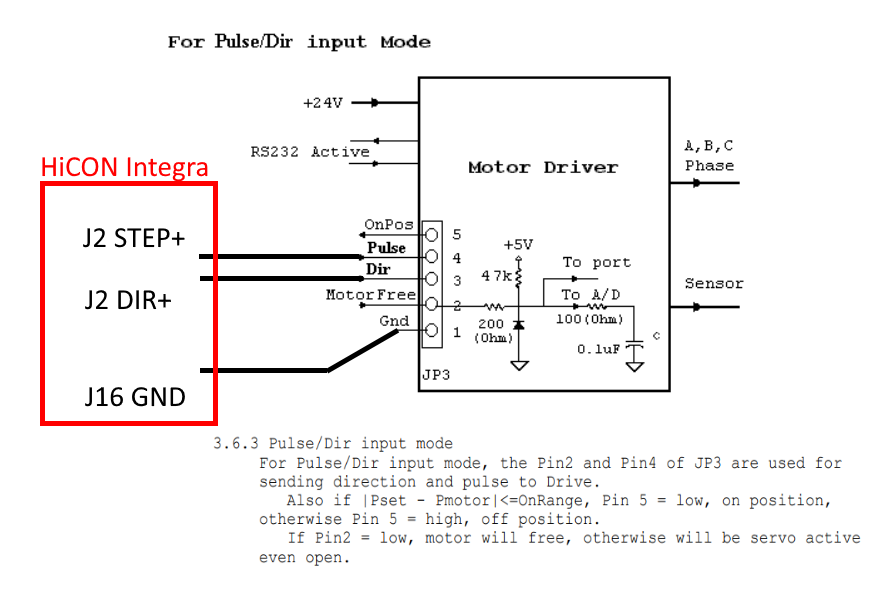

DMM-Dyn4

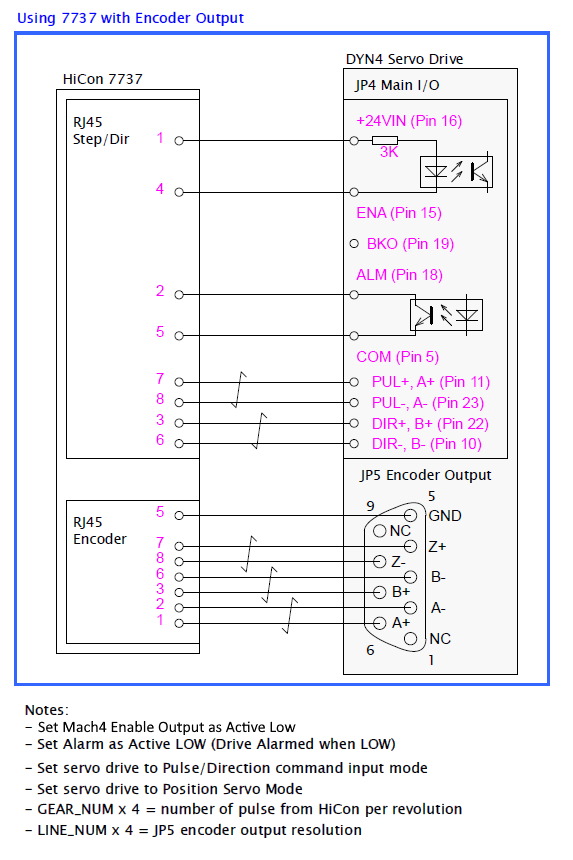

DMM-Dyn4 With 7737

DMM-Dyn2-

Integra with ±10V Analog Spindle Drive

Encoder Connections

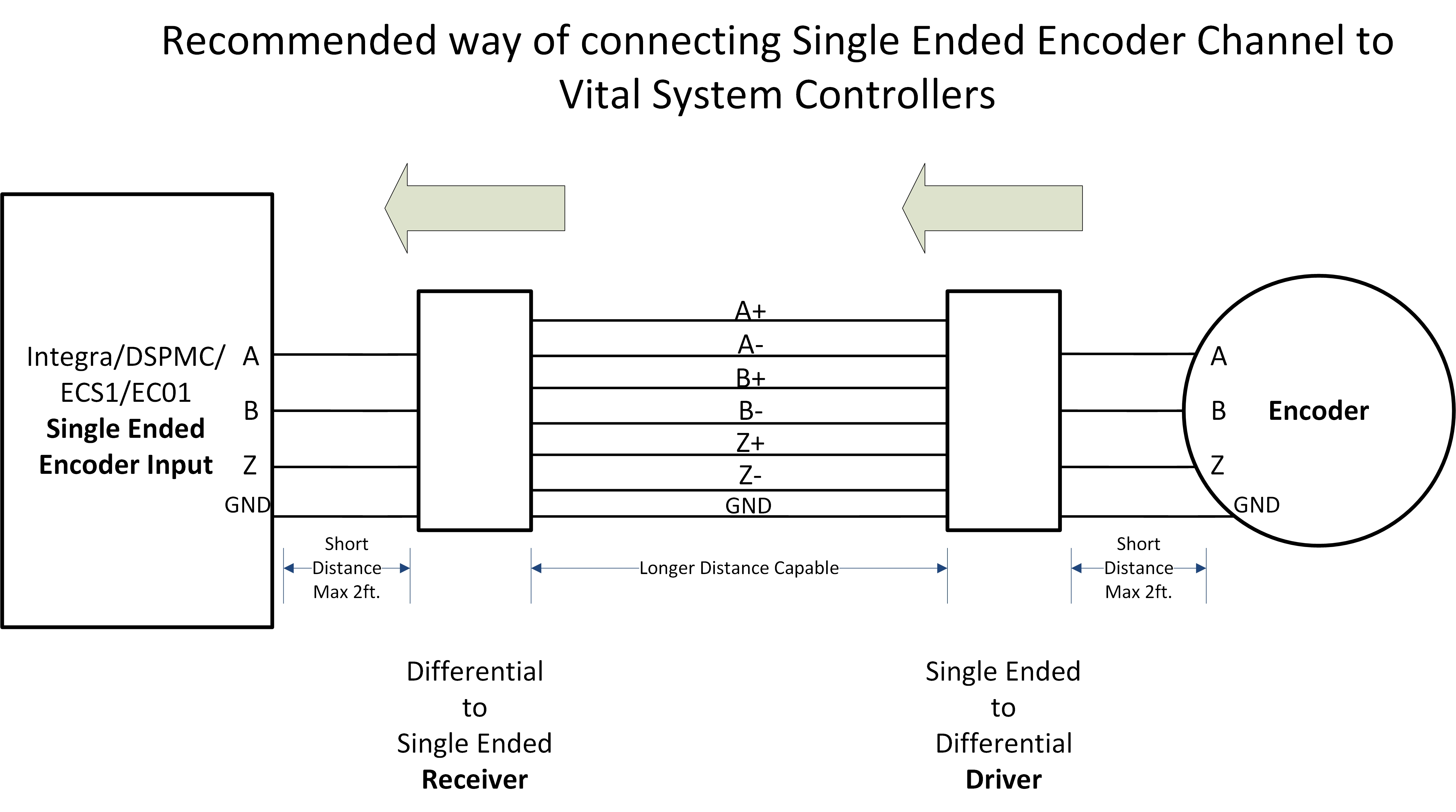

Integra/DSPMC/EC01/ECS1 Single Ended Encoder Connection

Rigid Tap

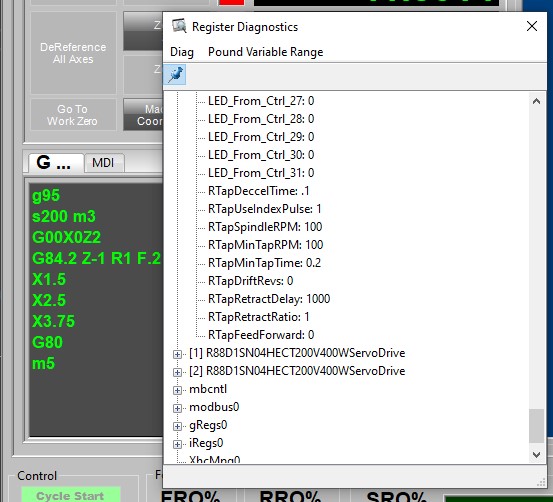

For more information on Rigid Tapping, please refer to the following guide: Rigid Tapping with HiCON.

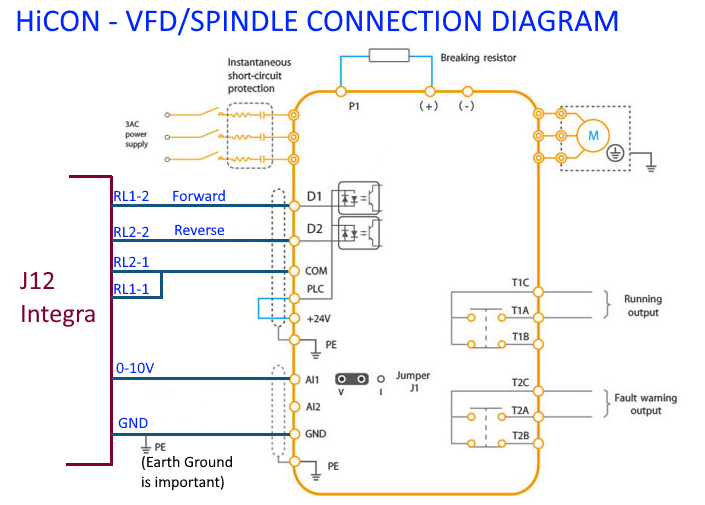

HiCON Integra with 0-10V Analog Spindle Drive

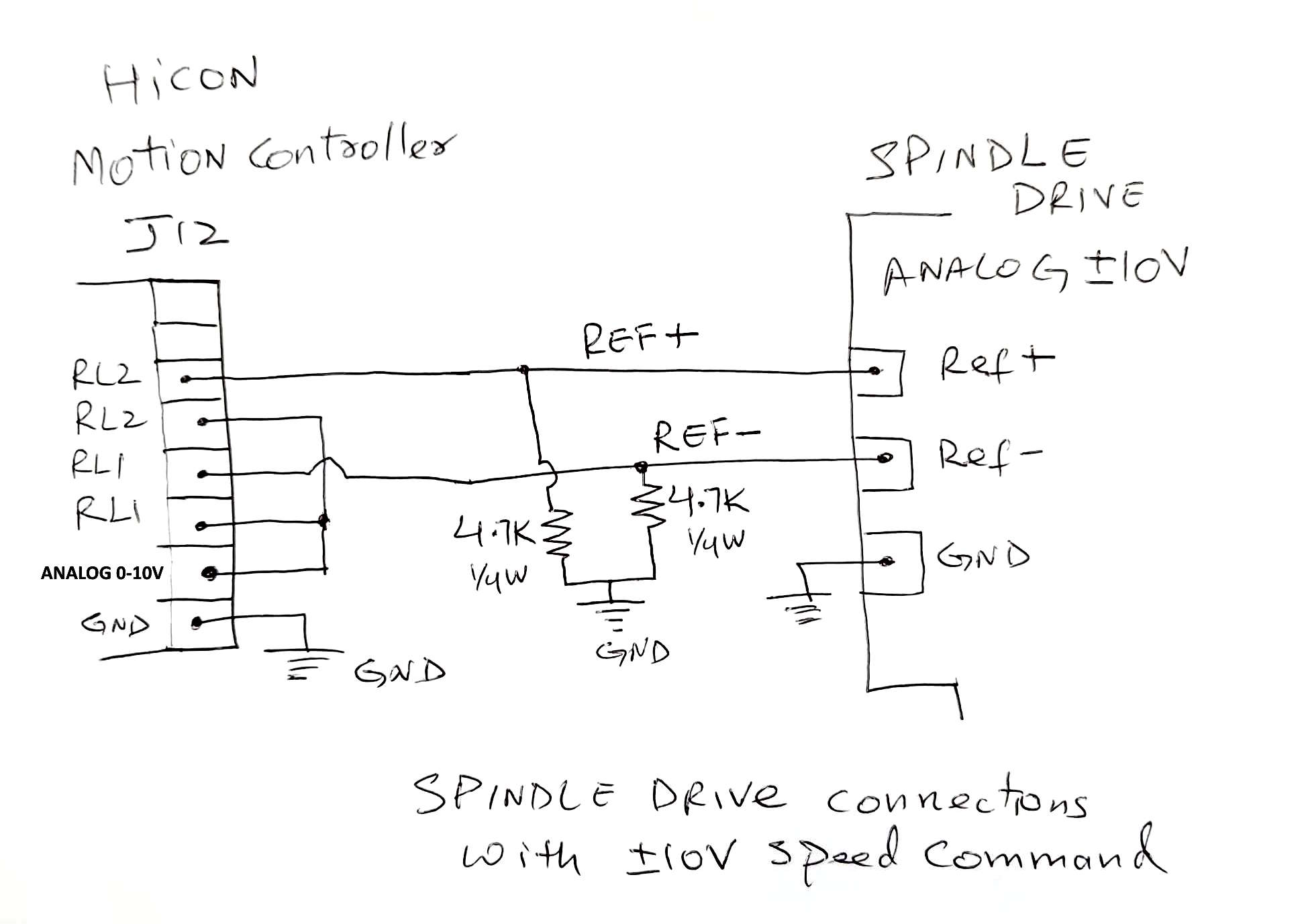

HiCON Integra with ±10V Analog Spindle Drive
